Product Details

Quick Details
Specifications

Place of Origin: CANGZHOU
Brand Name: xinlian
Model Number: API 5CT

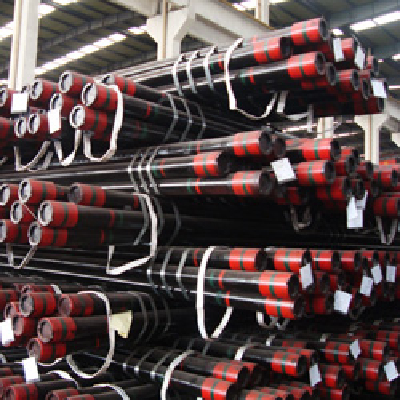

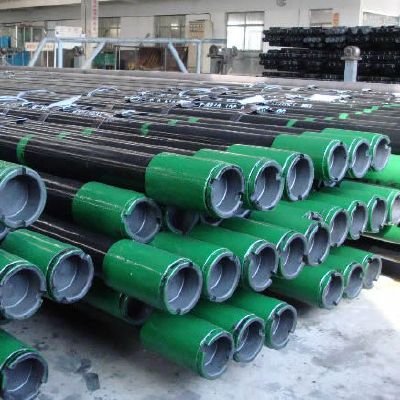

Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process. Tubing is manufactured in the same way as casing, except that an additional process known as "upsetting" is applied to thicken the pipes.

1.Specification range:OD: 42.16 MM - 114.3 MM(1.66"--4 1/2") WT: 3.56-16mm(2.3ppf-26.1ppf)

2. Materials: H40, J55, K55, N80-1, N80-Q, L80-1,L80-9Cr, L80-13Cr, P110, Q125 etc

3. Executive standards: API 5CT, GB, ISO11960, GOST

4. Thread connection: NU, EU，IJ

5. Length: R1, R2, R3

6. Testing: NDT etc related rules of API 5CT and 5B

7:Type:seamless pipe

Place of Origin: CANGZHOU
Brand Name: xinlian
Model Number: API 5CT

Sizes				OD D mm	Weight			wt t mm	Type of end
1	2				NU kg/m	EU kg/m	IJ kg/m
	NU	EU	IJ
	NU	EU	IJ						H40	J55	L80	N80	C90	T95	P110
1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
2-3/8 2-3/8 2-3/8 2-3/8 2-3/8	4.00 4.60 5.80 6.60 7.35	- 4.70 5.95 - 7.45	- - - - -	60.32 60.32 60.32 60.32 60.32	5.95 6.85 8.63 9.82 10.94	- 6.99 8.85 - 11.09	- - - - -	4.24 4.83 6.45 7.49 8.53	PU PNU - - -	PN PNU - - -	PN PNU PNU P PU	PN PNU PNU - -	PN PNU PNU P PU	PN PNU PNU P PU	- PNU PNU - -
2-7/8 2-7/8 2-7/8 2-7/8 2-7/8 2-7/8	6.40 7.80 8.60 9.35 10.50 11.50	6.50 7.90 8.70 9.45 - -	- - - - - -	73.02 73.02 73.02 73.02 73.02 73.02	9.52 11.61 12.80 13.91 15.63 17.11	9.67 11.76 12.95 14.06 - -	- - - - - -	5.51 7.01 7.82 8.64 9.96 11.18	PNU - - - - -	PNU - - - - -	PNU PNU PNU PU P P	PNU PNU PNU - - -	PNU PNU PNU PU P P	PNU PNU PNU PU P P	PNU PNU PNU - - -
3-1/2 3-1/2 3-1/2 3-1/2 3-1/2 3-1/2 3-1/2	7.70 9.20 10.20 12.70 14.30 15.50 17.00	- 9.30 - 12.95 - - -	- - - - - - -	88.90 88.90 88.90 88.90 88.90 88.90 88.90	11.46 13.69 15.18 18.90 21.28 23.07 25.30	- 13.84 - 19.27 - - -	- - - - - - -	5.49 6.45 7.34 9.52 10.92 12.09 13.46	PN PNU PN - - - -	PN PNU PN - - - -	PN PNU PN PNU P P P	PN PNU PN PNU - - -	PN PNU PN PNU P P P	PN PNU PN PNU P P P	- PNU - PNU - - -

Sizes				OD D mm	Weight			wt t mm	Type of end
1	2				NU kg/m	EU kg/m	IJ kg/m
	NU	EU	IJ
	NU	EU	IJ						H40	J55	L80	N80	C90	T95	P110
1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16

4 4 4 4 4 4	9.50 10.70 13.20 16.10 18.90 22.20	- 11.00 - - - -	- - - - - -	101.60 101.60 101.60 101.60 101.60 101.60	14.14 - 19.64 23.96 28.13 33.04	- 16.37 - - - -	- - - - - -	5.74 6.65 8.38 10.54 12.70 15.49	PN PU - - - -	PN PU - - - -	PN PU P P P P	PN PU - - - -	PN PU P P P P	PN PU P P P P	- - - - - -
4-1/2 4-1/2	12.60 15.20	12.75 -	- -	114.30 114.30	18.75 22.62	18.97 -	- -	6.88 8.56	PNU -	PNU -	PNU P	PNU -	PNU P	PNU P	- -
4-1/2 4-1/2 4-1/2 4-1/2 4-1/2	17.00 18.90 21.50 23.70 26.10	- - - - -	- - - - -	114.30 114.30 114.30 114.30 114.30	25.30 28.13 32.00 35.27 38.84	- - - - -	- - - - -	9.65 10.92 12.70 14.22 16.00	- - - - -	- - - - -	P P P P P	- - - - -	P P P P P	P P P P P	- - - - -
P—Plain end;N—Non-upset threaded and coupled;U—External upset threaded and coupled;I—insert joint.

Note: other premium connection shall be provided as per customer requirements.
